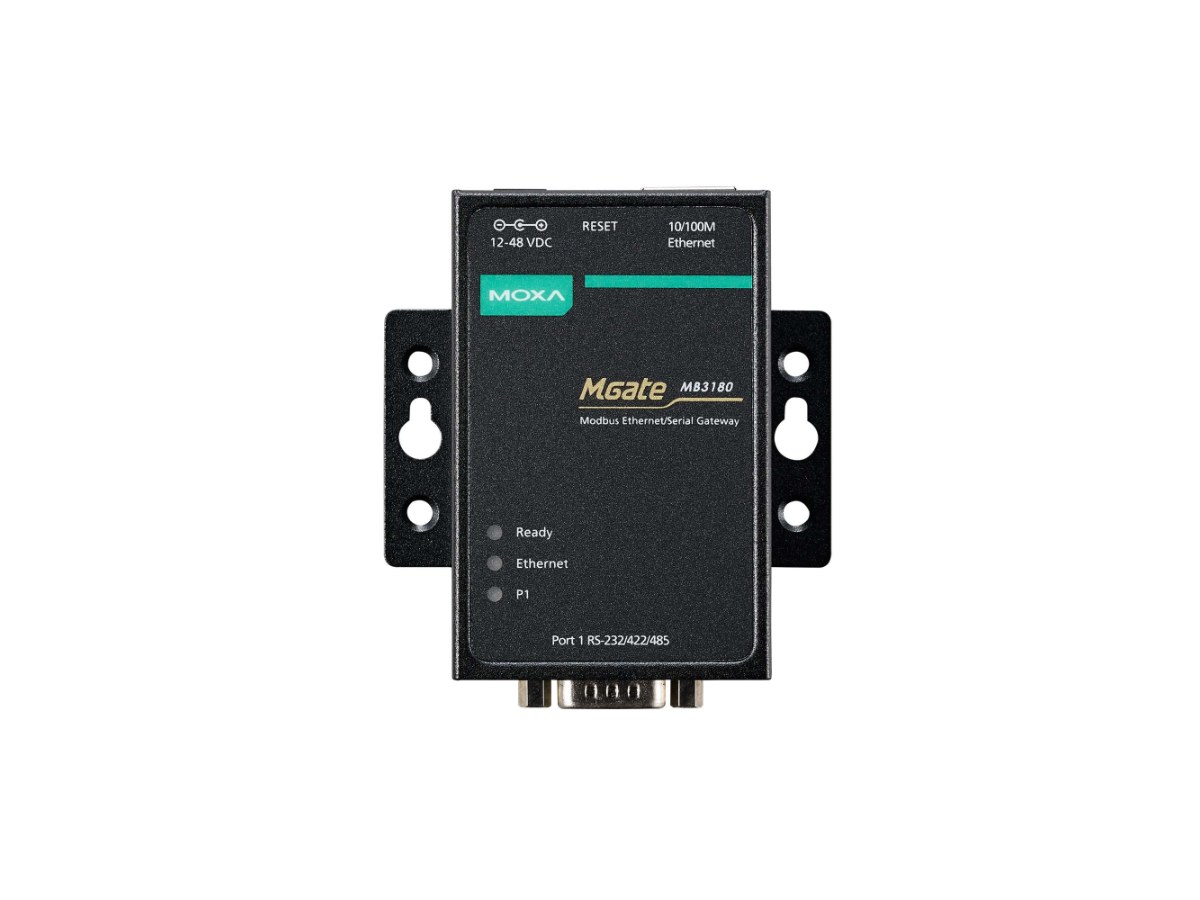

MGate MB3180/US

廠牌：MOXA 產品料號：8451.MB318.A82 連接埠數：1埠標準型Modbus閘道器-工業乙太網路閘道器 傳輸速率：Fieldbus閘道/板卡 擴充槽：; 通訊協定：; VPN：; Routing功能：有 Protocols：Modbus TCP Number of Ports：1 Speed：10/100 Mbps, Auto MDI/MDIX Connector：8-pin RJ45 Magnetic Isolation Protection：1.5 kV (built-in) Protocol：Modbus RTU/ASCII Slave/Master Number of Ports：MB3180: 1 Serial Standards：RS-232/422/485, software selectable Connectors：DB9 male ESD Protection：15 kV for all signals RS-485 Data Direction Control：ADDC® (automatic data direction control) Data Bits：7, 8 Stop Bits：1, 2 Parity：None, Even, Odd, Space, Mark Flow Control：RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) Baudrate：50 bps to 921.6 kbps RS-232：TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422：Tx+, Tx-, Rx+, Rx-, GND RS-485-4w：Tx+, Tx-, Rx+, Rx-, GND RS-485-2w：Data+, Data-, GND Configuration Options：Web Console, Telnet Console, Windows Utility Utility：MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 Multi-master and Multi-drop：Master mode: 32 TCP slaves Support：Smart Routing, MXview, SNMP v1 (read only) Housing：Metal, IP30 Weight：MGate MB3180: 340 g (0.75 lb) Dimensions：Without ears: Operating Temperature：0 to 60°C (32 to 140°F) Storage Temperature：-40 to 85°C (-40 to 185°F) Ambient Relative Humidity：5 to 95% (non-condensing) Input Voltage：12 to 48 VDC Input Current：MGate M3180: 200 mA @ 12 VDC Power Connector：MGate MB3180: Power jack Safety：UL 60950-1, EN 60950-1 EMC：EN 55032/24 EMI：CISPR 32, FCC Part 15B Class A EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Time：MGate M3180: 908,440 hrs Standard：Telcordia SR332 Warranty Period：5 years Details：See www.moxa.com/warranty MGate MB3180 1埠標準型Modbus閘道器 可在 Modbus TCP 和 Modbus RTU/ASCII 之間自由轉換 提供 1 個乙太網路埠和 1個 RS-232/422/485 埠 可同時支援16 個 TCP Master，每個 Master 最多可同時支援32 個要求 方便的硬體設定和組態 • Ethernet Interface • Serial Interface MB3280: 2 MB3480: 4 • Serial Communication Parameters • Serial Signals • Software Slave mode: 16 TCP masters (request queue 32-deep for each master) • Physical Characteristics MGate MB3280: 360 g (0.79 lb) MGate MB3480: 740 g (1.63 lb) MB3180: 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in) MB3280: 22 x 77 x 111 mm (0.87 x 3.03 x 4.37 in) MB3480: 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in) With ears: MB3180: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in) MB3280: 22 x 100 x • Environmental Limits • Power Requirements MGate M3280: 250 mA @ 12 VDC MGate M3480: 385 mA @ 12 VDC MGate MB3280/3480: Power jack and terminal block • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV (MB3180/MB3280) IEC 61000-4-5 Surge: Power: 1 kV; Signal: 2 kV (MB3480) IEC 61000-4-6 • MTBF (mean time between failures) MGate M3280: 749,455 hrs MGate M3480: 1,242,173 hrs • Warranty 商品規格：1埠標準型Modbus閘道器-工業乙太網路閘道器 / Fieldbus閘道 / 板卡 / ; / ; / ; / 有 （本站售價已含營業稅；代理商報價為未稅）
