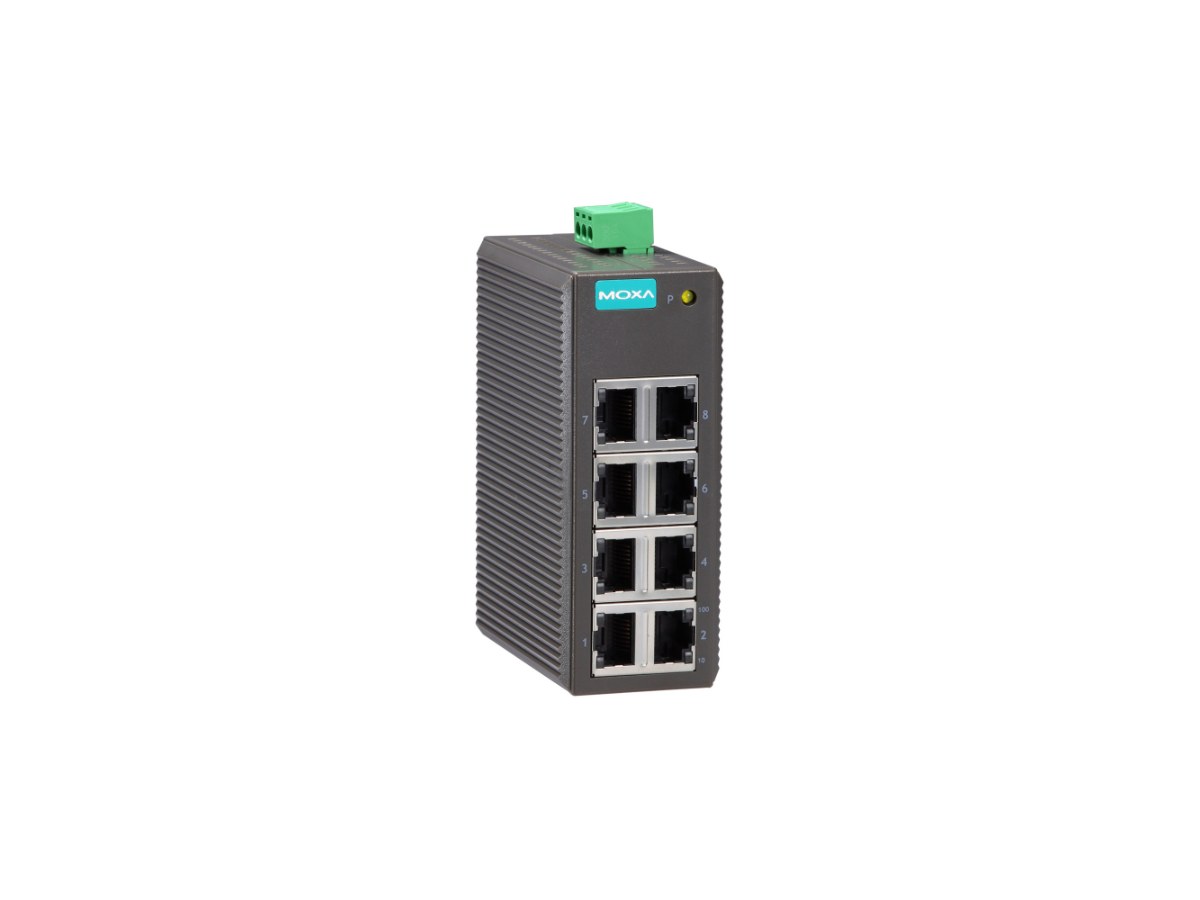

MOXA EDS-208/ 8埠入門級非網管型乙太網路交換器

廠牌：MOXA 產品料號：8431.E2080.A82 連接埠數：工業級-8埠入門級非網管型乙太網路交換器 傳輸速率：8* 10/100BaseT(X) ports 堆疊/機構：-10 to 60°C 擴充槽：; Mac Address：; 網管功能：N Standards：IEEE 802.3 for 10BaseT Processing Type：Store and Forward MAC Table Size：1 K Packet Buffer Size：512 kbit RJ45 Ports：10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection Fiber Ports：100BaseFX ports (SC/ST connector, multi-mode) Input Voltage：EDS-205: 24 VDC (12 to 48 VDC), single input Input Current：EDS-205: 0.11 A @ 24 V Overload Current Protection：1.1 A Connection：1 removable 3-contact terminal block Reverse Polarity Protection：Present Housing：Plastic IP Rating：IP30 protection Dimensions：EDS-205: 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in) Weight：EDS-205: 135 g (0.30 lb) Installation：DIN-rail mounting Operating Temperature：-10 to 60°C (14 to 140°F) Storage Temperature：-40 to 85°C (-40 to 185°F) Ambient Relative Humidity：5 to 95% (non-condensing) Safety：EDS-205: UL 508, EN 60950-1 EMC：EN 55032/24 EMI：CISPR 32, FCC Part 15B Class A EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Shock：IEC 60068-2-27 Freefall：IEC 60068-2-32 Vibration：IEC 60068-2-6 Note：Please check Moxa’s website for the most up-to-date certification status. Time：EDS-205: 3,915,945 hrs Standard：Telcordia (Bellcore), GB Warranty Period：5 years Details：See www.moxa.com/warranty EDS-208系列 8埠入門級非網管型乙太網路交換器 10/100BaseT(X) (RJ45連接器)，100BaseFX (多模，SC/ST連接器) 支援IEEE802.3/802.3u/802.3x 廣播風暴防護 (Broadcast storm protection) DIN-Rail安裝能力 -10 至 60°C 工作溫度範圍 • Technology IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control • Switch Properties • Interface • Optical Fiber • Power Requirements EDS-208 Series: 24 VDC (12 to 45 VDC), single input EDS-208: 0.12 A @ 24 V EDS-208-M: 0.2 A @ 24 V • Physical Characteristics EDS-208 Series: 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in) EDS-208 Series: 170 g (0.38 lb) • Environmental Limits • Standards and Certifications EDS-208 Series: UL 508 IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 • MTBF (mean time between failures) EDS-208: 401,624 hrs EDS-208-M-SC/ST: 368,353 hrs • Warranty 商品規格：工業級-8埠入門級非網管型乙太網路交換器 / 8* 10 / 100BaseT(X) ports / -10 to 60°C / ; / ; / N （本站售價已含營業稅；代理商報價為未稅）
