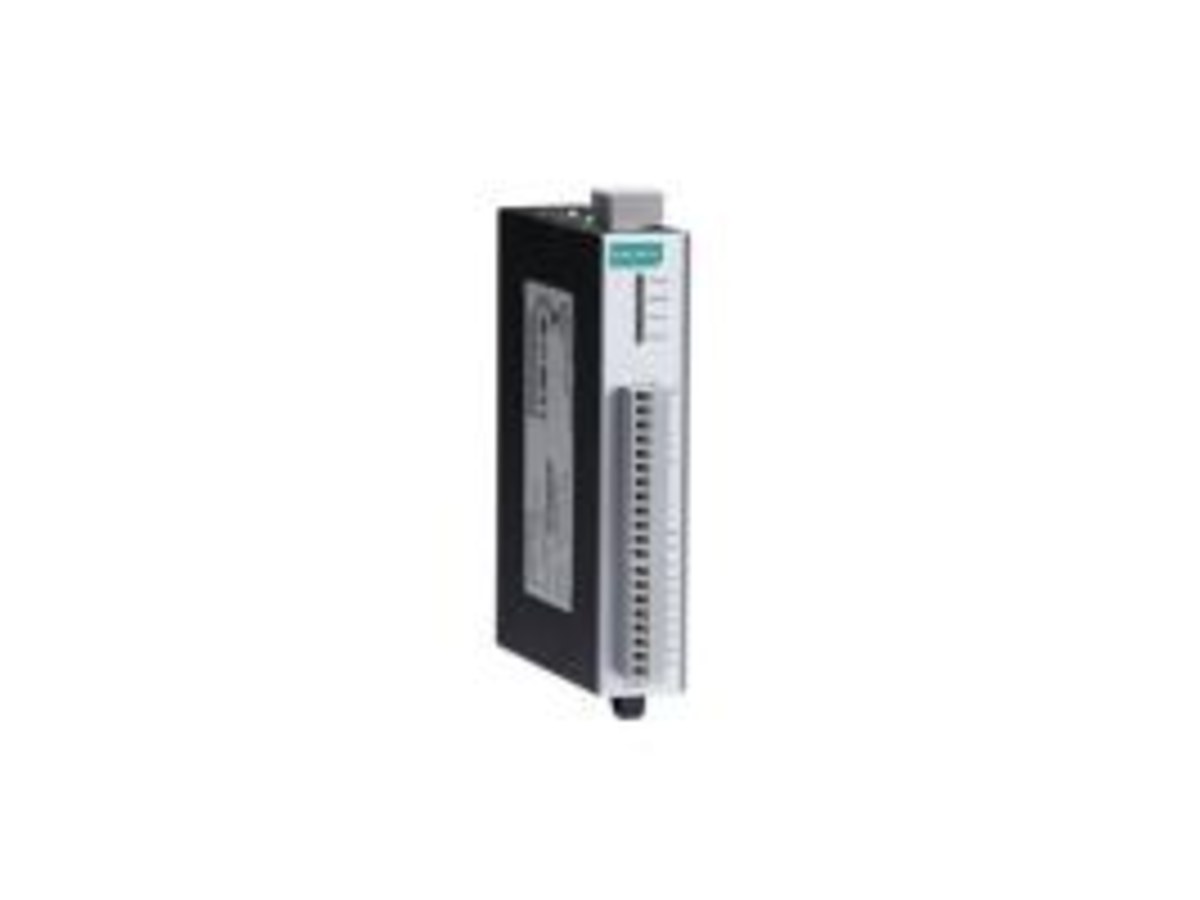

Moxa ioLogik E1240

廠牌：MOXA 產品料號：8431.E1240.A82 連接埠數：Remote Ethernet I/O, 8AI, 2-port Switch 傳輸速率：-10 to 60°C 堆疊/機構：配備 2 埠乙太網路交換器的乙太網路遠端 I/O 擴充槽：; Mac Address：; 網管功能：N Analog Inputs：8 channels Isolation：3k VDC or 2k Vrms Type：Differential input Resolution：16 bits I/O Mode：Voltage / Current (jumper selectable) Input Range：0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection) Accuracy：±0.1% FSR @ 25°C Sampling Rate：• All channels: 12 samples/sec Input Impedance：10 mega-ohms (min.) Built-in Resistor for Current Input：120 ohms Input Voltage：12 to 36 VDC Input Current：121 mA @ 24 VDC Time：474,053 hrs Standard：Telcordia SR332 Ethernet：2 switched 10/100 Mbps RJ45 ports Protection：1.5 kV magnetic isolation Protocols：Modbus/TCP (Slave), EtherNet/IP*, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP Wiring：I/O cable max. 14 AWG Dimensions：27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) Weight：Under 200 g (0.44 lb) Mounting：DIN rail or wall Operating Temperature：Standard Models: -10 to 60°C (14 to 140°F) Storage Temperature：-40 to 85°C (-40 to 185°F) Ambient Relative Humidity：5 to 95% (non-condensing) Shock：IEC 60068-2-27 Vibration：IEC 60068-2-6 Altitude：Up to 2000 m Note：Please contact Moxa if you require products guaranteed to function properly at higher altitudes. Safety：UL 508 EMC：EN 55032, EN 55024, EN 61000-3-2/3-3, EN 61000-6-2/6-4 EMI：CISPR 32, FCC Part 15B Class A EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Hazardous Location：Class 1 Division 2, ATEX Zone 2 Green Product：RoHS, CRoHS, WEEE Warranty Period：5 years Details：See www.moxa.com/warranty ioLogik E1240 乙太網路遠端I/O，內建2組乙太網路交換埠及8 AI 內建2埠乙太網路交換器，可供串接使用(daisy-chain) 免費支援Moxa的推進式Active OPC Server Lite 可無縫連結任何 SCADA 系統 節省80%網路頻寬 七倍快速的 I/O 反應速度 使用者定義的Modbus/TCP位址表 MXIO 程式庫，支援 Windows 、WinCE VB/VC.NET 和Linux C API 可透過 Web 配置，支援設定檔匯入和匯出功能 • ioLogik E1240 Specifications • Inputs and Outputs • Analog Input ±0.3% FSR @ -10 and 60°C ±0.5% FSR @ -40 and 75°C • Per channel: 1.5 samples/sec • Only one channel enabled: 12 samples/sec • Power Requirements • MTBF (mean time between failures) • Common Specifications *Requires online registration at https://www.moxa.com/Event/DAC/2016/Smart_EIP_IO/index.htm (available free of charge) • Physical Characteristics • Environmental Limits Wide Temp. Models: -40 to 75°C (-40 to 167°F) • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 Note: Please check Moxa’s website for the most up-to-date certification status. • Warranty Note: Because of the limited lifetime of power relays, products that use this component are covered by a 2-year warranty. 商品規格：Remote Ethernet I / O, 8AI, 2-port Switch / -10 to 60°C / 配備 2 埠乙太網路交換器的乙太網路遠端 I / O / ; / ; / N （本站售價已含營業稅；代理商報價為未稅）
