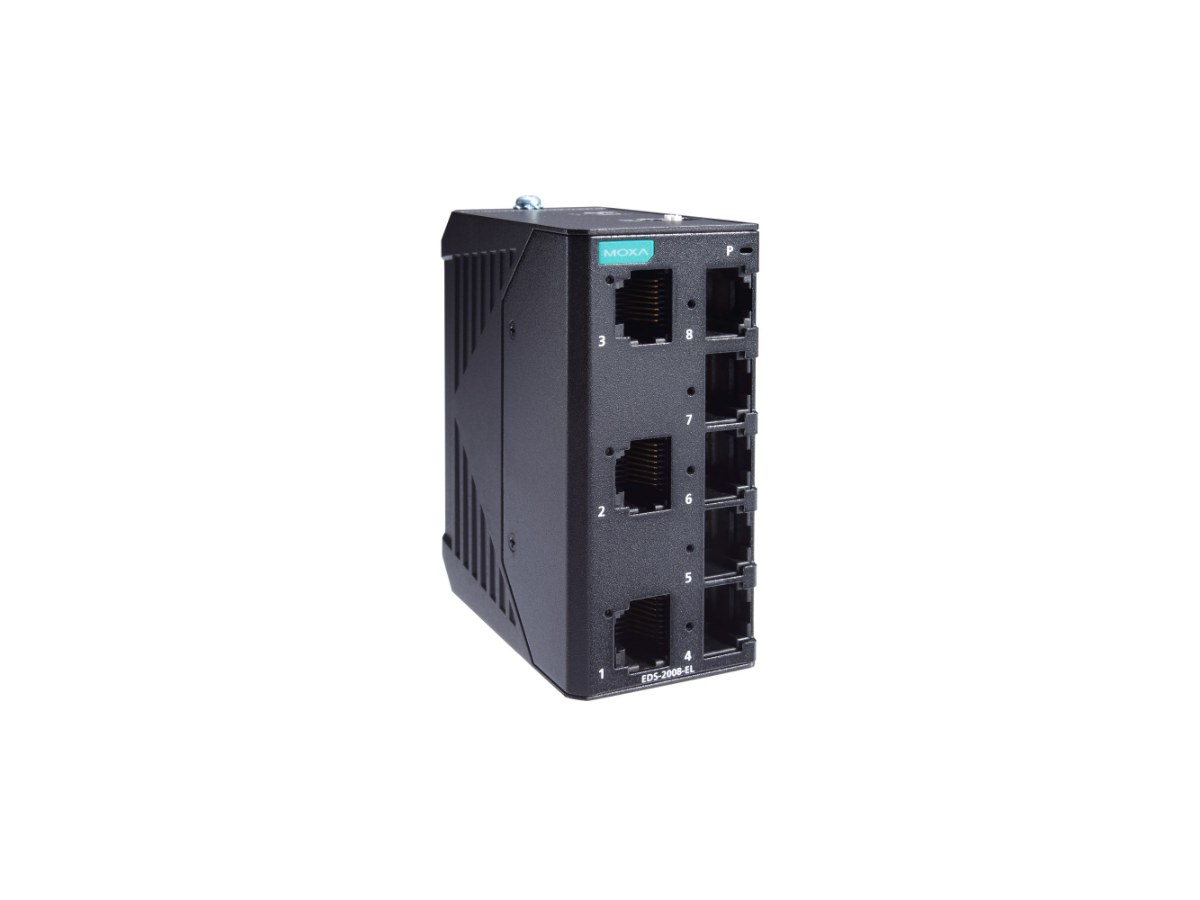

MOXA EDS-2008-EL-T 金屬外殼 8 埠入門級非網管 Ethernet 交換器 (-40度~75度)

廠牌：MOXA 產品料號：8431.208LT.A82 連接埠數：8 傳輸速率：; 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：N 10/100BaseT(X) Ports (RJ45 connector)：EDS-2008-EL: 8 100BaseFX Ports (multi-mode SC connector)：EDS-2008-EL-M-SC: 1 100BaseFX Ports (multi-mode ST connector)：EDS-2008-EL-M-ST: 1 Standards：IEEE 802.3 for 10BaseT Processing Type：Store and Forward MAC Table Size：8 K Packet Buffer Size：4 Mbits Ethernet Interface：Quality of Service (QoS), Broadcast Storm Protection (BSP) Connection：1 removable 2-contact terminal block(s) Input Current：EDS-2008-EL: 0.067A @ 24 VDC Input Voltage：12/24/48 VDC Operating Voltage：9.6 to 60 VDC Overload Current Protection：Supported Reverse Polarity Protection：Supported Installation：DIN-rail mounting, Wall mounting (with optional kit) Weight：163 g (0.36 lb) Housing：Metal Dimensions：EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in) Ambient Relative Humidity：5 to 95% (non-condensing) Operating Temperature：EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-M-ST: -10 to 60°C (14 to 140°F) Storage Temperature (package included)：-40 to 85°C (-40 to 185°F) Safety：UL 61010-2-201, EN 62368-1 (LVD) EMC：EN 55032/35 EMI：CISPR 22, 32, FCC Part 15B Class A EMS：IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV Shock：IEC 60068-2-27 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Time：3,472,660 hrs Standards：Telcordia (Bellcore), GB Warranty Period：5 years Details：See www.moxa.com/warranty EDS-2008-EL-T 金屬外殼 8 埠入門級非網管 Ethernet 交換器(寬溫 -40~75度) 10/100BaseT(X)（RJ45 接頭） 體積輕巧，易於安裝 支援 QoS，以處理大流量的重要資料 IP40 防護等級的金屬外殼 -40°C 至 75°C 的寬廣操作溫度範圍（T 型號） • Ethernet Interface EDS-2008-EL-M-ST: 7 EDS-2008-EL-M-SC: 7 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service • Switch Properties • DIP Switch Configuration • Power Parameters EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC • Physical Characteristics EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) EDS-2008-EL-M-SC: 36 x 81 x 67.9 mm (1.4 x 3.19 x 2.67 in) • Environmental Limits EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-M-ST-T: -40 to 75°C (-40 to 167°F) • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF • Warranty 商品規格：8 / ; / ; / ; / ; / N （本站售價已含營業稅；代理商報價為未稅）
