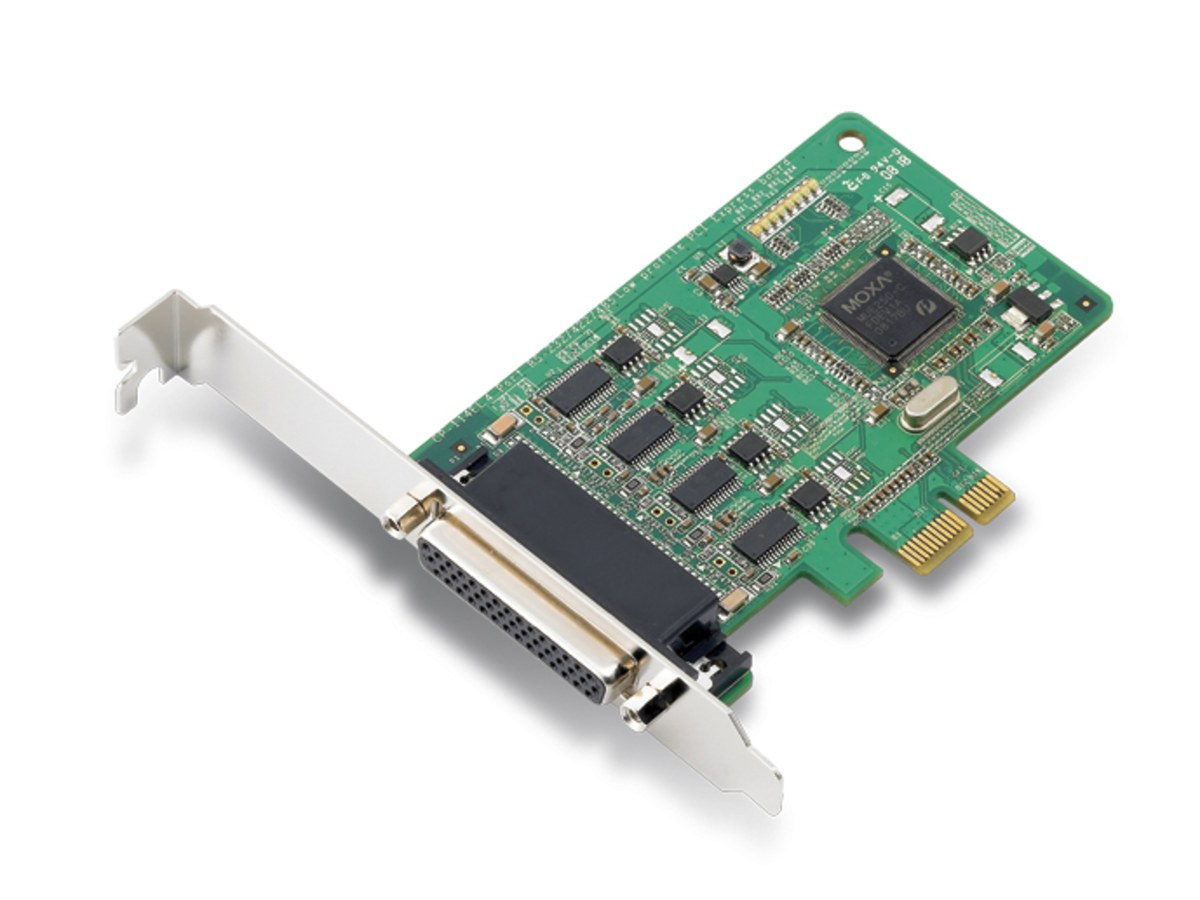

CP-114E

廠牌：MOXA 產品料號：8430.C114E.A82 連接埠數：4 Port PCIe Board, w/o Cable, RS-232/422/485, LowProfile 傳輸速率：不含線材 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：; Serial Interface Comm. Controller 16C550C compatible PCI Express 1.0 Connector DB44 female 128 bytes Max. No. of Boards per PC No. of Ports Serial Standards RS-232, RS-422, RS-485 Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates) Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 None, Even, Odd, Space, Mark Flow Control None, RTS/CTS, XON/XOFF Isolation CP-114EL-I Series: 2 kV Serial Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND Serial Software Features Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x UNIX Drivers QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 Power Parameters Input Current CP-114EL Series: 835 mA @ 3.3 VDC CP-114EL-I Series: 1,170 mA @ 3.3 VDC Physical Characteristics Dimensions CP-114EL Series: 67.21 x 103 mm (2.65 x 4.06 in) CP-114EL-I Series: 67.21 x 135 mm (2.65 x 5.31 in) LED Interface LED Indicators Built 商品規格：4 Port PCIe Board, w / o Cable, RS-232 / 422 / 485, LowProfile / 不含線材 / ; / ; / ; / ; （本站售價已含營業稅；代理商報價為未稅）
