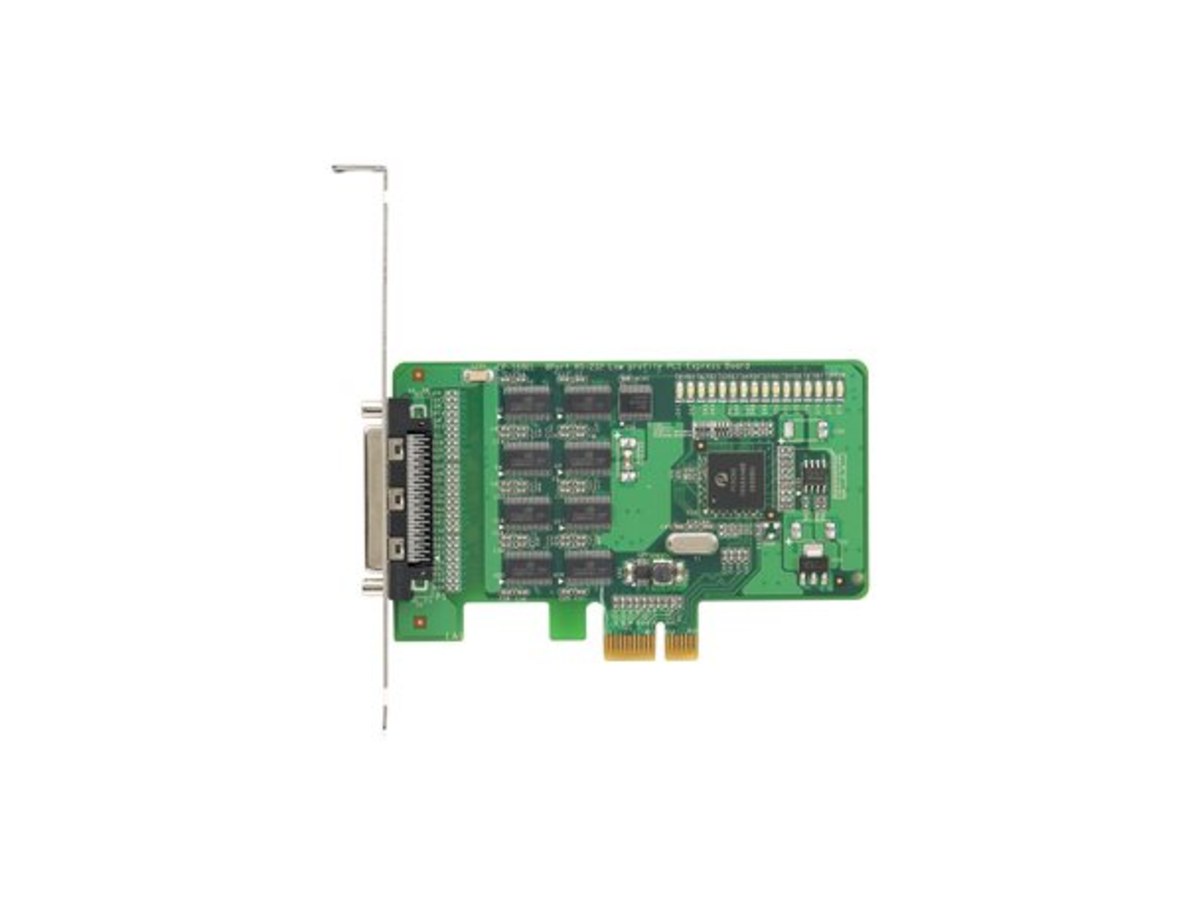

CP-168EL-A w/oCable

廠牌：MOXA 產品料號：8430.168EL.A82 連接埠數：8 port PCIe Board , w/o Cable , RS-232 , Low Profile, designed for POS and ATM applications 傳輸速率：; 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：; Comm. Controller：16C550C compatible Bus：PCI Express x1 Connector：VHDCI 68 Number of Ports：8 Serial Standards：RS-232 Max. No. of Boards per PC：4 Baudrate：50 bps to 921.6 kbps Data Bits：5, 6, 7, 8 Stop Bits：1, 1.5, 2 Parity：None, Even, Odd, Space, Mark Flow Control：RTS/CTS, XON/XOFF RS-232：TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Dimensions：64.42 x 102 mm (2.54 x 4.02 in) Windows：Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS Linux：Linux 2.4.x, 2.6.x, 3.x Unix-like Systems：QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 Operating Temperature：0 to 55°C (32 to 131°F) Storage Temperature：-20 to 85°C (-4 to 185°F) Ambient Relative Humidity：5 to 95% (non-condensing) EMC：EN 55032/24 EMI：CISPR 32, FCC Part 15B Class B EMS：IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV Time：2,351,336 hrs Standard：Telcordia (Bellcore) TR/SR Input Current：1,225 mA @ 3.3 VDC Warranty Period：5 years Details：See www.moxa.com/warranty • Hardware • Serial Interface • Performance • Serial Communication Parameters • Serial Signals • Physical Characteristics • Driver Support Note: Please refer to Moxa’s website for the latest driver support information. • Environmental Limits • Standards and Certifications IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000 • MTBF (mean time between failures) • Power Requirements • Warranty 商品規格：8 port PCIe Board , w / o Cable , RS-232 , Low Profile, designed for POS and ATM applications / ; / ; / ; / ; / ; （本站售價已含營業稅；代理商報價為未稅）
