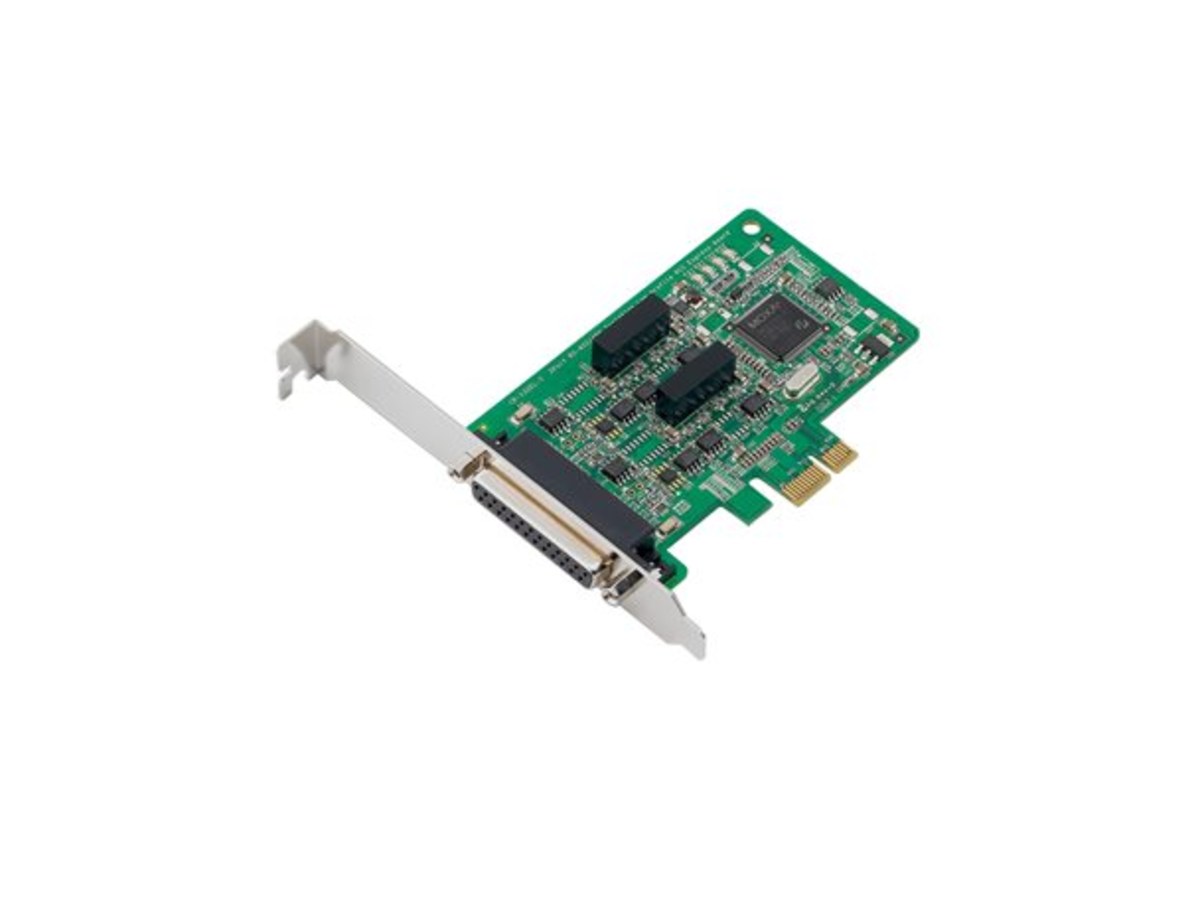

MOXA 2埠RS-422/485 PCIe串列通訊擴充卡附DB9M線 CP-132EL-DB9M

廠牌：MOXA 產品料號：8430.132ED.A82 連接埠數：2 Port PCIe Board , w/ DB9M Cable ,RS-422/485 , Low Profile 傳輸速率：; 堆疊/機構：; 擴充槽：; Mac Address：; 網管功能：; Serial Interface Comm. Controller 16C550C compatible PCI Express 1.0 Connector DB25 female 128 bytes Max. No. of Boards per PC No. of Ports Serial Standards RS-422, RS-485 Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates) Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 None, Even, Odd, Space, Mark Flow Control None, XON/XOFF Isolation CP-132EL-I-DB9M: 2 kV Serial Signals Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND Serial Software Features Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x UNIX Drivers Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6 Power Parameters Input Current CP-132EL-DB9M: 548 mA @ 3.3 VDC CP-132EL-I-DB9M: 636 mA @ 3.3 VDC Physical Characteristics Dimensions CP-132EL-DB9M: 67.21 x 101.97 mm (2.65 x 4.08 in) CP-132EL-I-DB9M: 67.21 x 103.97 mm (2.65 x 4.16 in) LED Interface LED Indicators Built-in Tx, Rx LEDs for each port Environmental Limits Operating Temperature 商品規格：2 Port PCIe Board , w / DB9M Cable ,RS-422 / 485 , Low Profile / ; / ; / ; / ; / ; （本站售價已含營業稅；代理商報價為未稅）
