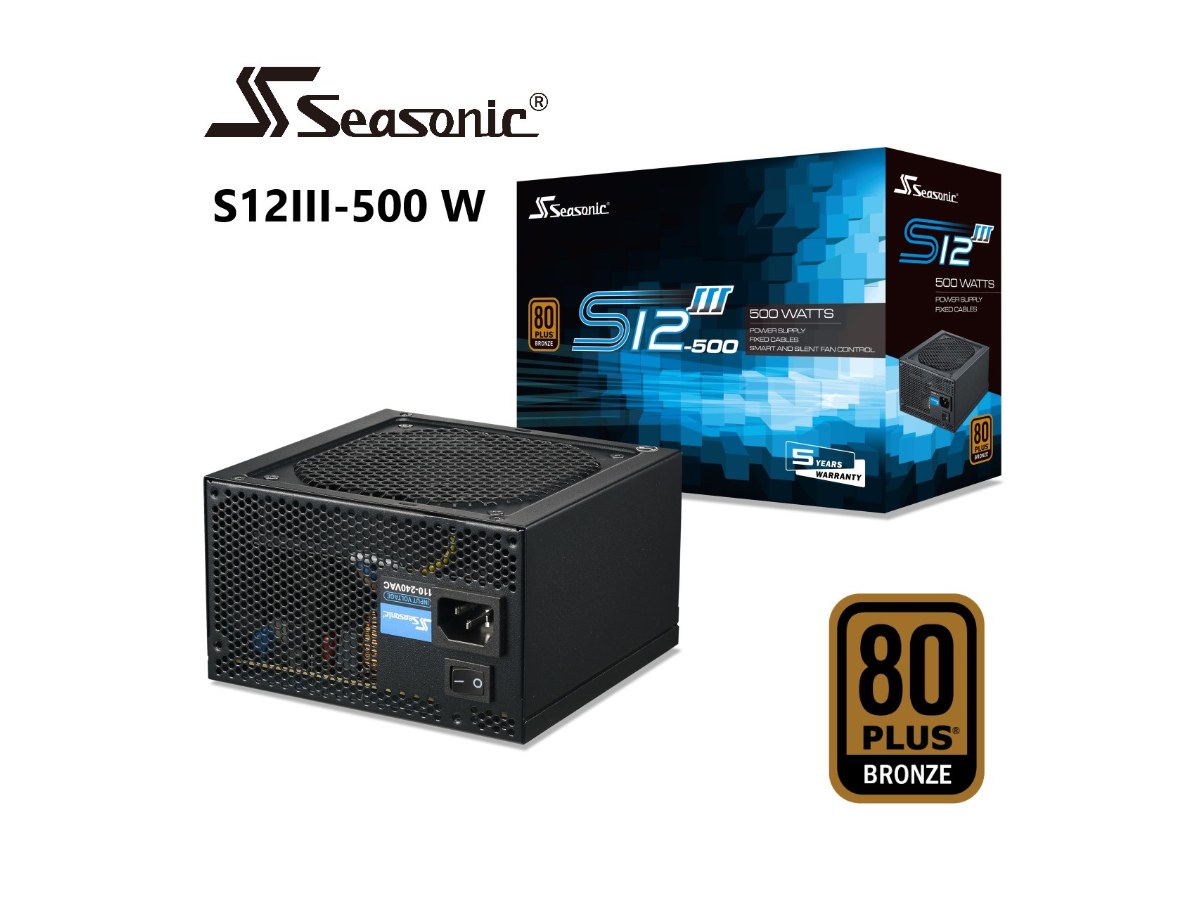

海韻 S12III-500 銅牌/直出 (SSR-500GB3)

廠牌：海韻 產品料號：1300.S500B.260 型式：ATX 12V / 80PLUS 主機板規格：Intel及AMD適用 磁碟擴充數：PCI-E*2+SATA*4+3小 電源供應：500W 尺寸(深X寬X高)：L140*W150*H86 mm 配件：電源線/螺絲 ★支援最新AMD平台 ★80 PLUS® Bronze 認證 ★嚴苛的電壓管控 ★智慧靜音風扇控制 (S2FC) ★充足穩定+12V輸出 ★主動功率因數修正電路 (99% PF Typical) ★LLC諧振轉換器設計 ★工業級交流電壓輸入(Full Range) ★超通風蜂窩結構設計 ★支援多媒體高階顯示卡 ★120mm 靜音軸承風扇 Form Factorl Intel ATX 12 V Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H) Fan Information Fan Size Fan Control Seasonic S2FC Fan Bearing Sleeve bearing Life Expectancy 30,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fixed cable Cable type Flat black cables Electrical Features Operating Temperature MTBF @ 25 °C, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick Environmental Compliance Energy Star, RoHS, WEEE, REACH Warranty Power Output AC Input Voltage: 110 V - 240 V Current: 8 A - 4 A Frequency: 50 Hz - 60 Hz DC Output Maximum Power Total continuous power Connector Connector Count Cable Length Main Power (24/20 pins) 1 x 550 mm - attached CPU (8/4 pins) 1 x 600 mm - 8/4 pins attached PCIe (8/6 pins) 1 x 550 + 150 mm - 8/6 pins attached 2 x 400 + 120 mm - attached Peripheral 1 x 450 + 120 + 120 mm - attached 1 x 120 mm - end connector of the peripheral cable 商品規格：ATX 12V / 80PLUS / Intel及AMD適用 / PCI-E*2+SATA*4+3小 / 500W / L140*W150*H86 mm / 電源線 / 螺絲 （本站售價已含營業稅；代理商報價為未稅）
